Marco EPIC 6100 Refraction System
SKU: EPIC-6100CFG

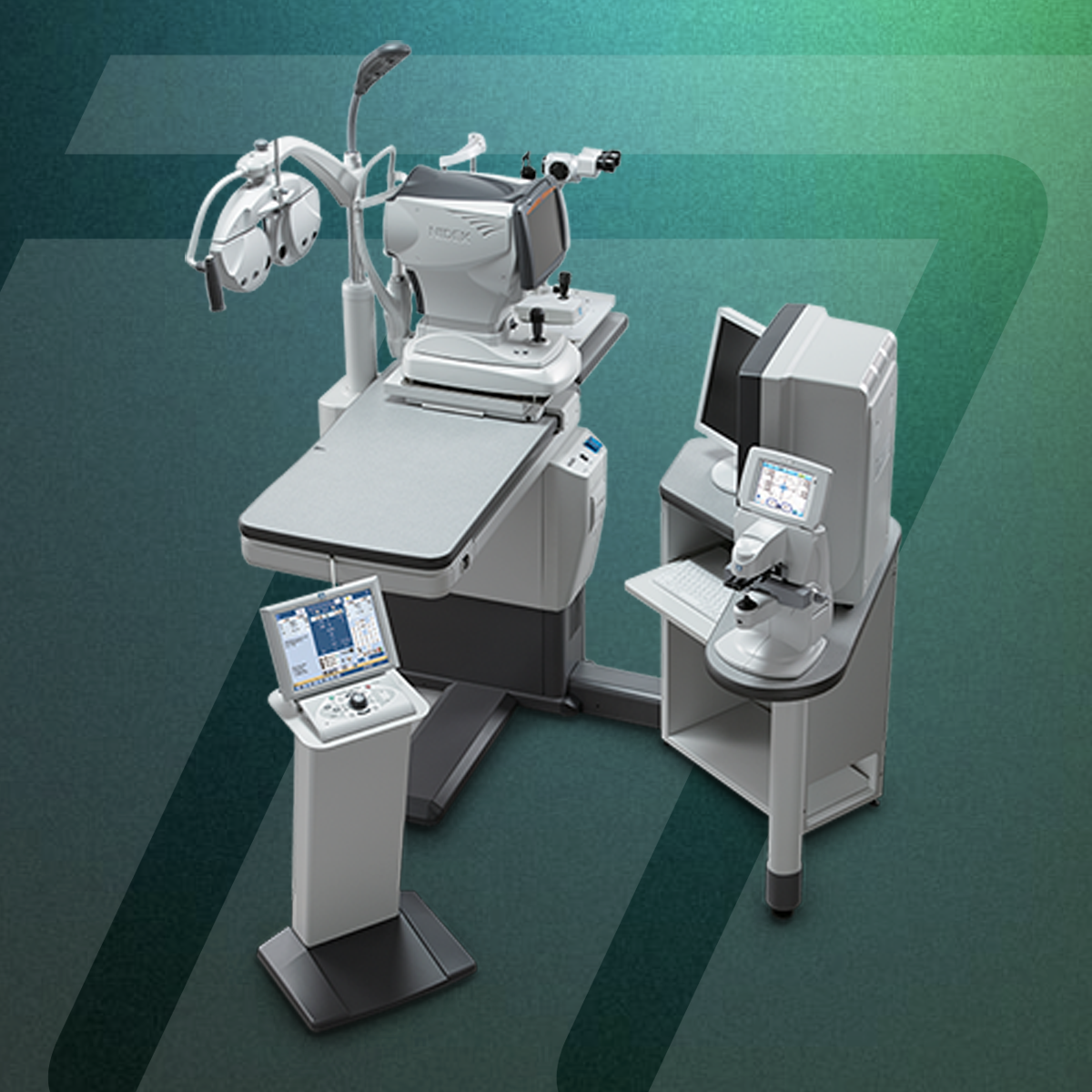

The Marco EPIC-6100 Refraction Workstation integrates automated digital refraction and visual acuity testing with customizable pretesting equipment in a compact 5' x 6' system. Built around the TRS-6100 Automated Refraction System, it supports configurations incorporating an autorefractor/keratometer, non-contact tonometer, OPD wavefront aberrometer, and automated lensmeter. Seamless data connectivity helps streamline the examination process and transfer results to compatible EMR and EHR systems.
- Compact 5' x 6' workstation consolidates multiple stages of the refraction process
- Customizable ARK, NCT, OPD, and automated lensmeter configurations
- TRS-6100 automated refraction technology supports fast, accurate examinations
- Effortless vertical adjustment of the main instrument table
Technical Details
Marco EPIC 6100 Refraction System Specifications
ConfigurationIntegrated automated refraction workstation

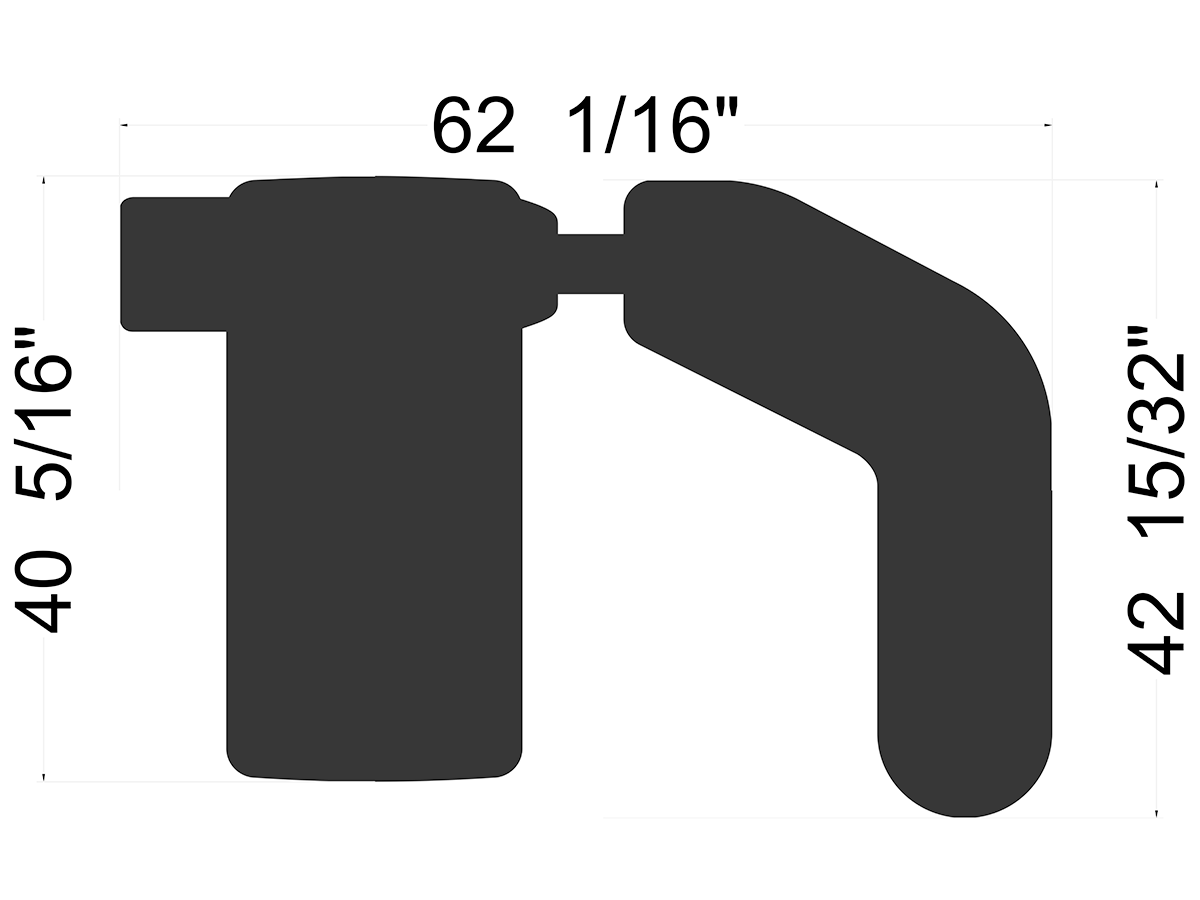

Footprint5' x 6'
Available ConfigurationsARK, NCT, OPD, and automated lensmeter options
Optional Equipment SupportSecond instrument table for an additional device
Training13.5 JCAHPO credit hours through the Marco Training Institute
EMR/EHR ConnectivityIntegrates with most EMR and EHR systems
Sphere-29.00 to +26.75 D in 0.12, 0.25, 0.50, 1.00, 2.00, or 3.00 D increments
Sphere for Cross-Cylinder and Prism Testing-19.00 to +16.50 D
Cylinder0.00 to ±8.75 D in 0.25, 1.00, 2.00, or 3.00 D increments
Axis0°–180° in 1°, 5°, or 15° steps
PD Far Mode48–80 mm
PD Near Mode at 35 cm50–74 mm
Far PD at 100% Convergence54–80 mm
Rotary Prism0.00–20.00Δ in 0.1, 0.5, or 2Δ increments
Cross Cylinder±0.25 D, ±0.50 D, and ±0.25 D automatic cross cylinder
OccluderAvailable
Pinhole2.0 mm diameter
Color FilterRight red and left green
Polarizing FilterRight 135° and left 45° or right 45° and left 135°
Fixed Cross Cylinder±0.50 D with axis fixed at 90°
Retinoscopy Lenses0 D, +1.50 D, and +2.00 D
Maddox RodRight horizontal and left vertical
Near-Vision Refraction Distance350–700 mm in 50 mm increments
Field of View40° at 12 mm vertex distance; 39° at 13.75 mm vertex distance
Forehead Rest Adjustment25 ±2 mm
Vertex Distance12, 13.75, 16, 18, or 20 mm
Horizontal Level Adjustment±2.5°
Display10.4" color LCD touchscreen
Refractor Main Body16.1" W x 4.2" D x 10.9" H; 7.1 lb
Control Box10.2" W x 9.1" D x 8.1" H; 4.6 lb
Relay Box7.4" W x 8.7" D x 2.9" H; 3.1 lb
Printer4.0" W x 3.4" D x 4.8" H; 1.3 lb
Refractor ArmElectromagnetic lock with vertical and horizontal movement
Refractor Arm Vertical Stroke310 mm
Refractor Arm Patient-Side Stroke230 mm
TRS-6100 Power SupplyAC 100–240 V, 50/60 Hz
TRS-6100 Power Consumption90 VA
Workstation Power SupplyAC 100–120 V or 220–240 V, 50/60 Hz
Maximum Workstation Power Consumption600 VA including refractor and connected optometry devices
