Keeler UBM Plus System
SKU: US0ACUBMPL

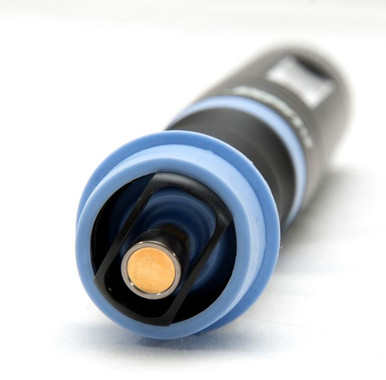

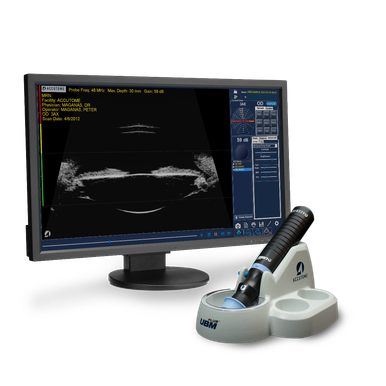

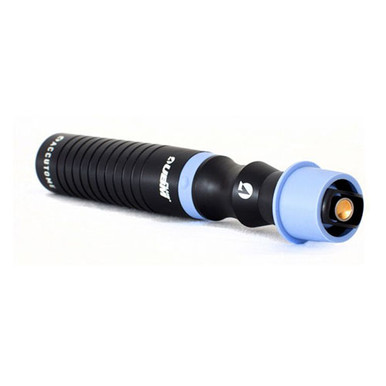

The Keeler UBM Plus probe has a guarded tip to prevent damage to both the patient and the probe. The UBM Plus is used for anterior segment imaging. This unit is an incredibly portable device because the 48 MHz probe plugs directly into any Windows™ laptop or desktop computer.

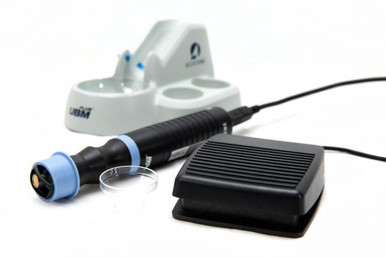

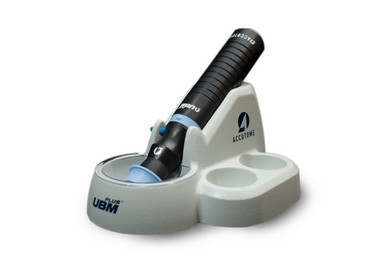

Accessories Included: Software installation, USB stick, probe holder, footswitch, wireless mouse, ophthalmic gel, and scleral shell.

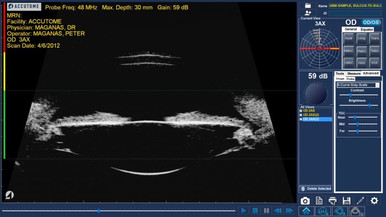

- High-Definition Imaging - Detailed structure definition including cornea, iris, ciliary body, zonules, crystalline lens, and intraocular lens, as well as pathologies
- State-of-the-Art Probe Design - Sharper, more focused images due to the elimination of signal loss
- Easy To Set Up Defaults – Smooth customer interface and automatic EMR exports that decrease examination time, increase patient throughput, and increase profit
- Unsurpassed Data Analysis - Contains tools for measuring sulcus-to-sulcus, anterior chamber depth, positioning of intraocular lenses, and filtration angle of the eye.
Technical Details
Keeler UBM Plus System Specifications
Weight6 oz.
Dimensions7” long X 1.25” diameter
Frequency48 MHz
Axial Resolution0.015mm
Electronic Lateral Resolution0.05 mm
Electronic Gain0-112 dB
Adjustable GammaLinear, S-Curve, Log, Color
Scanning Angle30°
Field Of View32 mm
Frame Rate Per Second10
Sampling Rate2048 (points per line)
Vectors Per Frame256
Focal Point13 mm
Focal Zone4 mm
TgcYes
Frozen Image Gain AdjustmentYes
Zoom8x Maximum
ReportsIntegrated Microsoft Word
Snapshot Formatjpeg, bmp, png, tiff, gif
Data Archive/ Export CapabilityYes
Max. Number Of Frames Per Scan256
Size Of Cine Loop16-128 MB
Measurement Calipers With Velocity Adjustment4 line, 2 area, 2 angle
