LIGHTMED LIGHTLas 532 Photocoagulator
SKU: LTM-532
The LIGHTMED LIGHTLas 532 green laser photocoagulator can be used in both traditional continuous wave or SP-Mode (sub-threshold technology) for optimal patient outcomes. Additionally, LIGHTMED's unique modular design allows for the integration of SLT and/or YAG functionalities at any time.

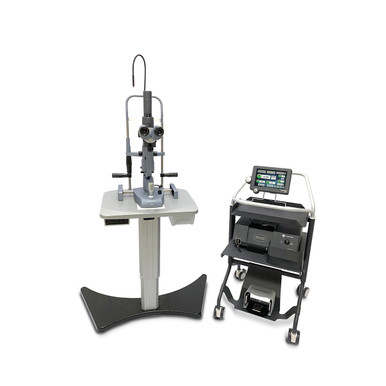

Also available with integrated slit lamp, table, and smart cart.
- Conventional CW and Sub-Threshold SP-MODE (micro pulse) Laser Mode (adjustable platform)
- Laser Cavity Bonding
- Instant Duty-Cycle Circularity
- Superior Laser Crystal Coating
Features
Innovation in every detail.
Conventional CW and Sub-Threshold SP-MODE (micro
Conventional CW and Sub-Threshold SP-MODE (micro pulse) Laser Mode (adjustable platform)
Laser Cavity Bonding
Laser Cavity Bonding
Instant Duty-Cycle Circularity
Instant Duty-Cycle Circularity
Superior Laser Crystal Coating
Superior Laser Crystal Coating
Technical Details
LIGHTMED LIGHTLas 532 Photocoagulator Specifications
Laser SystemDiode Pump Solid State (DPSS) true CW and SP-Mode™
Safety ClassificationClass 4
Wavelength532 nm (green)
Power Output50 mW – 2.0 W and 50 mW – 4.0 W (ENT optional)
Max Power At Cornea2.0 W (Endo, LIO, and SLA at all spot sizes)
Pulse Duration0.01 – 3.0 seconds
Pulse Interval0.01 – 3.0 seconds, and continuous
Sub-Threshold Laser Therapy (Sp-Mode) SettingsDuration: 150 μs – 600 μs (in 50 μs increments)
Sub-Threshold Laser Therapy (Sp-Mode) SettingsDuty cycle: 5% – 30% (in 2.5% increments)
Sub-Threshold Laser Therapy (Sp-Mode) SettingsPeriod: 1400 μs – 1850 μs (in 50 μs increments)
Aiming BeamLaser diode 653 nm (red), 0.1 – Safety Classification
Dimensions(laser console) 13 cm (H) x 36 cm (W) x 33 cm (D), 5.1 in (H) x 14.5 in (W) x 12.9 in (D)
Weight (Laser Console)12 kg, 26.4 lbs.
Power Requirements100 – 340 VAC, 50/60 Hz auto-ranging
