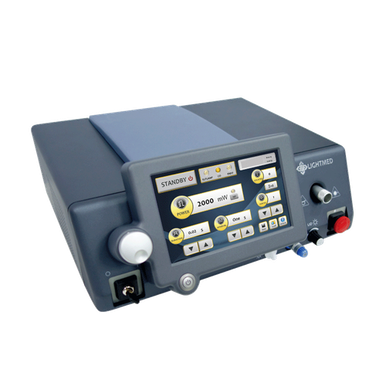

LIGHTMED LIGHTLas 577 Photocoagulator
SKU: LTM-577
The LIGHTLas 577 yellow laser photocoagulator from LIGHTMED offers safer, more efficient treatment. It features SP-Mode and continuous wavelengths and an easy-to-use LCD touchscreen interface. Additionally, LIGHTMED's modular design allows for easy SLT and/or YAG integration at any time.

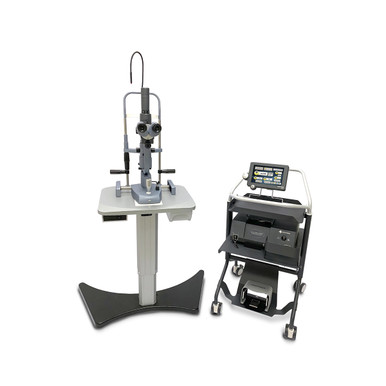

Also available with integrated slit lamp, table, and smart cart.
- Conventional CW and Sub-Threshold SP-MODE (micro pulse) Laser Mode (adjustable platform)
- Power Control Wireless foot pedal
- 7" LCD Touch Screen Interface
- Safety Glasses
Technical Details
LIGHTMED LIGHTLas 577 Photocoagulator Specifications
Laser SystemOPSL True CW &Micro Pulse
Safety ClassificationClass 4
WavelengthYellow 577nm
Power Output50mW - 2.0W (continuously variable SmartControl™ Increments)
Max Power At Cornea2.0W (Enso, LIO & SLA at all spot sizes)
Pulse Duration0.01 - 3.0s
Pulse Interval0.01 - 3.0s, & Continuous
Sp-Mode™ SettingsDuration: 150µs-600µs (50µs increments)
Sp-Mode Duty Cycle7.5%-30% (2.5% increments)
Period1400µs-18500µs (50µs increments)
CoolingAuto Fan & TEC's for Laser & Crystal
Treatment Spot Size50 - 500µm Continuously Variable or Stepped, 50 - 1000µm Continuously Variable (Integrated Version)
Aiming BeamLaser diode 653nm, red 0.1 - < 1mW
Safety ClassificationClass 2
Dimensions (Laser Console)13cm(H) x 36cm(W) x 33cm (D) 5.1" x 14.5" x 12.9
Weight (System)12Kg, 26 lb (system)
PowerREQUIREMENTS 100‐230 VAC, 50-60 Hz, Auto ranging
