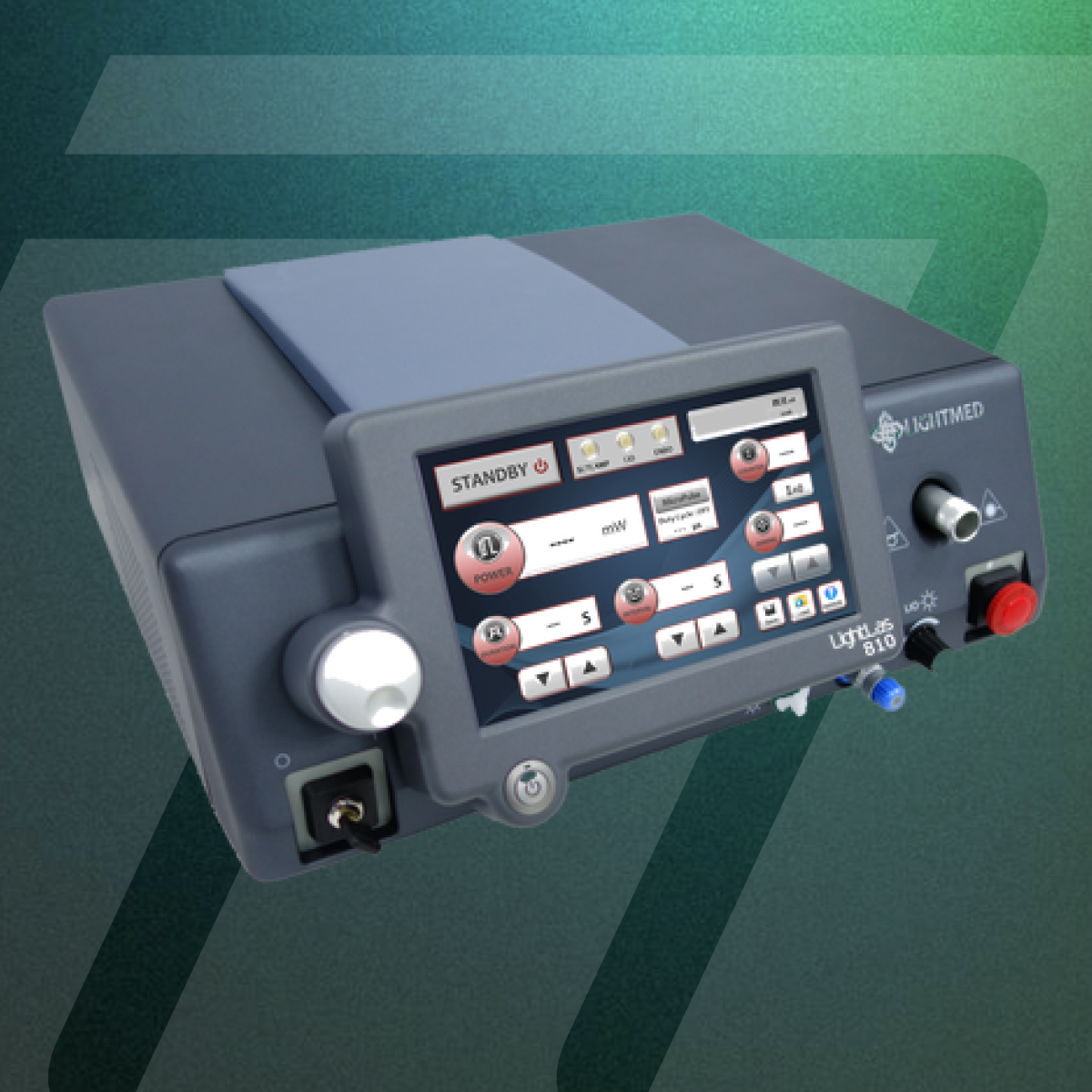

LIGHTMED LIGHTLas 810 Photocoagulator
SKU: LTM-ULD0010T
The LIGHTMED LIGHTLas 810 diode laser photocoagulator with SP-Mode is unmatched in durability and versatility. LIGHTMES's modular design also allows for wasy SLT and/or YAG integration at any time. Also available with integrated slit lamp, table, and smart cart.
- Conventional CW and Sub-Threshold SP-MODE (micro pulse) Laser Mode (adjustable platform)
- Laser Cavity Bonding
- Instant Duty-Cycle Circularity
- Superior Laser Crystal Coating
Features
Innovation in every detail.
Conventional CW and Sub-Threshold SP-MODE (micro
Conventional CW and Sub-Threshold SP-MODE (micro pulse) Laser Mode (adjustable platform)
Laser Cavity Bonding
Laser Cavity Bonding
Instant Duty-Cycle Circularity
Instant Duty-Cycle Circularity
Superior Laser Crystal Coating
Superior Laser Crystal Coating
Technical Details
LIGHTMED LIGHTLas 810 Photocoagulator Specifications
Laser SystemDiode Laser
Treatment Laser Safety ClassificationClass 4
WavelengthRed (810nm)
Power Output50-3000mW
Max Power At Cornea3.0W (Endo, LIO & SLA @ all spot sizes)
Pulse Duration0.01 - 10.0s
Pulse Interval0.01 - 3.0s & Continuous
Sp-Mode SettingsDuration: 10ms - 10,000ms (in 50 μs increments)
Sp-Mode SettingsDuty Cycle: 5%, 7.5%, 10%, 12.5%, 15%, 20%, 30%
Sp-Mode SettingsPeriod: 10ms-3,000ms and OFF (0 ms) (in 50 μs increments)
CoolingAuto Fan & TEC’s for Laser & Crystal
Treatment Spot Size50 - 1,000μm Integrated Version
Aiming BeamLaser diode 635-650nm, red 0.1 Aiming Laser Safety Classification
Dimensions13cm (H) x 36cm (W) x 33cm (D), 51” x 14.5” x 12.9”
Weight12kg, 26.4 lbs
Power Requirements100-230 VAC, 50-60Hz Auto Ranging
