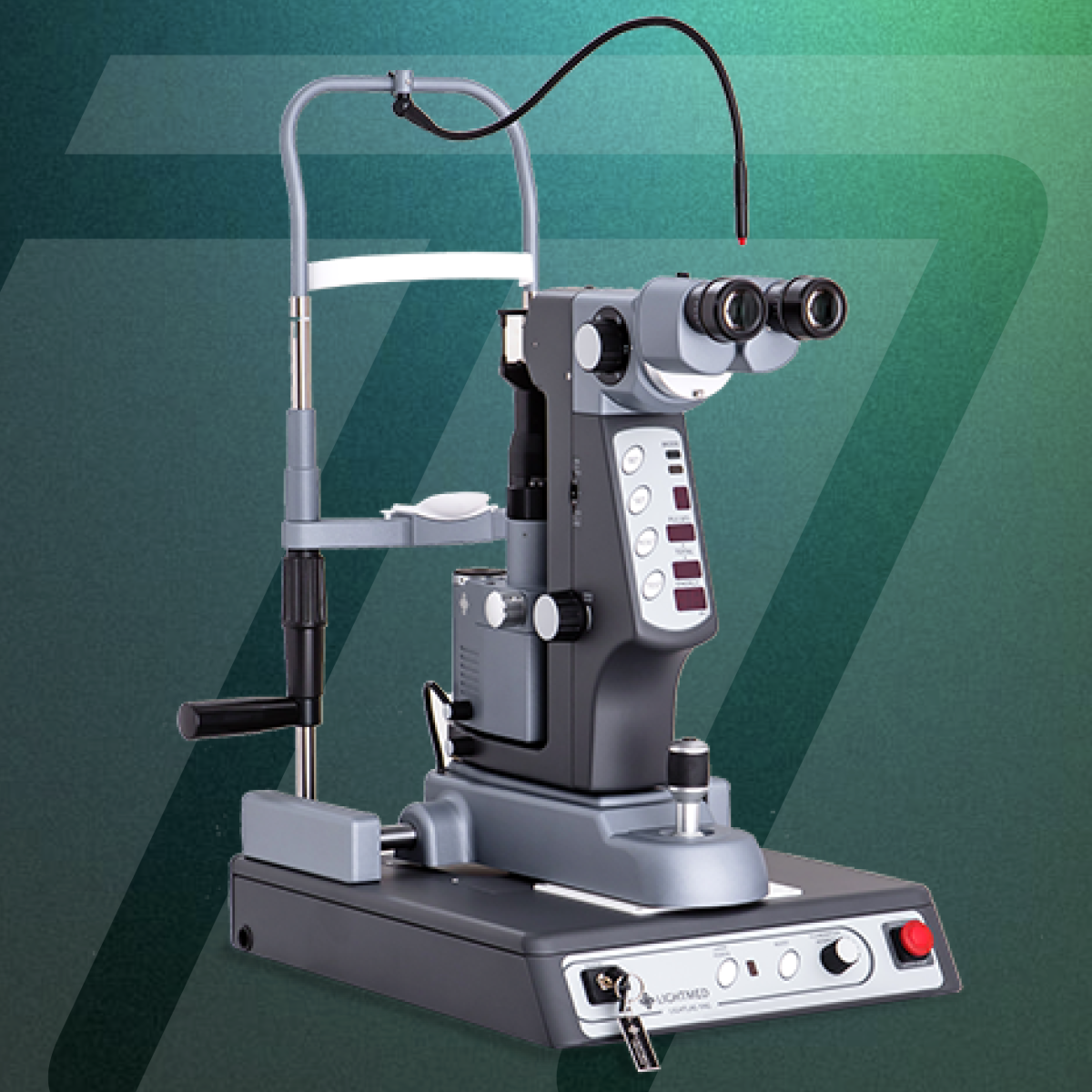

LIGHTMED LIGHTLas YAG-V Laser
SKU: LTM-YAG-V
The LIGHTMED LIGHTLas YAG-V laser adds vitreolysis functionality and is a powerful multi-purpose anterior and posterior workstation. Additionally, LIGHTMED lasers feature a unique modular design so you can add Selective Laser Trabeculoplasty (STL) or photocoagulation at any time.
Also available with optional green aiming beam - SKU: LTM-YAG-VG
- Twin Aiming Focusing System
- Superior Crystal-Q Switch Laser Cavity
- Slit Lamp Integrated System
- 5 Step Magnification Changer
Technical Details
LIGHTMED LIGHTLas YAG-V Laser Specifications
Laser TypeCrystal Q-switched Nd:YAG
Wavelength1064 nm
Energy Range0.2 to ≤ 15 mJ (in single pulse mode), 10 to ≤ 25 mJ (in double pulse mode), 20 to ≤ 45 mJ (in triple pulse mode)
Pulse Width4 nanoseconds
Treatment Spot Size8 μm
Burst Mode1, 2, or 3 pulses each burst; selectable
Mode StructureFundamental; diffraction limited
Average Air Breakdown≤ 2.1 mJ; ≤ 1.5 mJ (in liquid solution)
Cone Angle16°
Treatment Beam Offset Range±500 μm; continuously variable
Laser Repetition RateUp to 3.0 Hz (single pulse); up to 2.3 Hz (double pulse); up to 2 Hz
Aiming BeamDual beam laser diode; continuous wave (CW); 635 nm (red)
MagnificationIntegrated 5-position: 5x, 8x, 14x, 25x, and 38x
CoolingAir convection; passive
Dimensions72 cm (L) x 54 cm (W) x 54 cm (H)
