Nidek

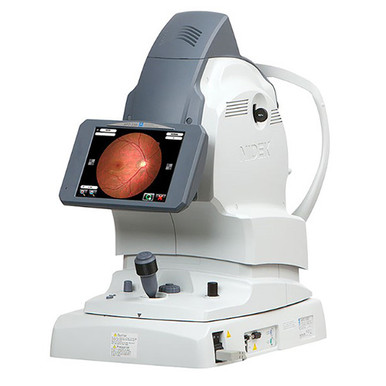

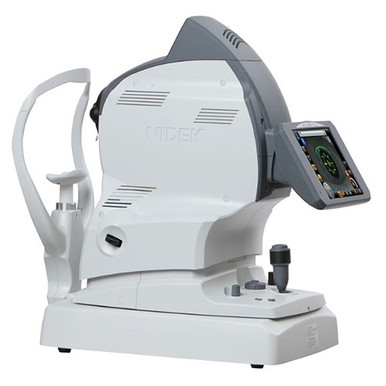

Marco AFC-330 Automated Fundus Camera
SKU: AFC-330
The Marco AFC-330 is a smart fundus camera with built-in camera and computer, automated photography functions, multiple data management utilities, and easy-to-use operator assist functions. These smart features make fundus photography easier than ever for screening and diagnosis.
- Automated Functions for Enhanced Ease-of-Use - 3D auto tracking - Auto focus - Auto switching from anterior eye to fundus - Auto shot - Auto print/export
- The image capture interval indicator shows elapsed time after each shot to help allow recovery from pupil constriction; intervals are adjustable from 1 to 10 minutes in 1-minute increments.
- An inset anterior eye monitor lets operators verify alignment; a focus split indicator displays focus deviation to guide manual fundus focusing.
- On-screen target marks guide stereo image capture and panorama image series; stereo viewing and panorama composition require NAVIS-EX software.
Features
Innovation in every detail.
All-in-one design
All-in-one design
3D automatic alignment with auto tracking
3D automatic alignment with auto tracking, focus, and capture
Automatic switching from anterior to posterior
Automatic switching from anterior to posterior focusing
Automatic panoramic imaging
Automatic panoramic imaging
Technical Details
Marco AFC-330 Automated Fundus Camera Specifications
TypeNon-mydriatic Automated Fundus Camera
Angle Of View45º (33º in small-pupil photography mode)
Working Distance45.7mm (from objective lens to cornea)
Minimum Pupil Diameter4.0mm (3.3mm in small-pupil photography mode)
Focusing MethodInfrared focus split alignment Adjustable range: -12 to +15 D
Light SourceFor observation: Halogen lamp 12V 50WFor Photography: Xenon flash lamp 300W
Flash Intensity17 levels from F1 (F4.0 +0.8 EV) to F17 (F16 +0.8 EV) 0.5 EV increments
Internal Fixation TargetLED (maximum 9 points)
External Fixation TargetFree-arm (optional)
Horizontal Movement40mm (back and forth) 85mm (left and right)
Vertical Movement32mm
Chinrest Movement62mm (up and down, motorized)
AutotrackX-Y-Z direction
Auto CaptureAutomatic image capture
CameraBuilt-in 12 megapixel CCD camera
DisplayTiltable 8.4-inch color LCD touchscreen
InterfaceLAN, USB 2.0
Measurements316mm (W) x 518mm (D) x 579mm (H) 12.4”(W) x 20.4” (D) x 22.8” (H)
Mass (Approximate)29 kg
Power SupplyAC 100-240 V ±10%, 50 / 60 Hz
Power Consumption150 VA
