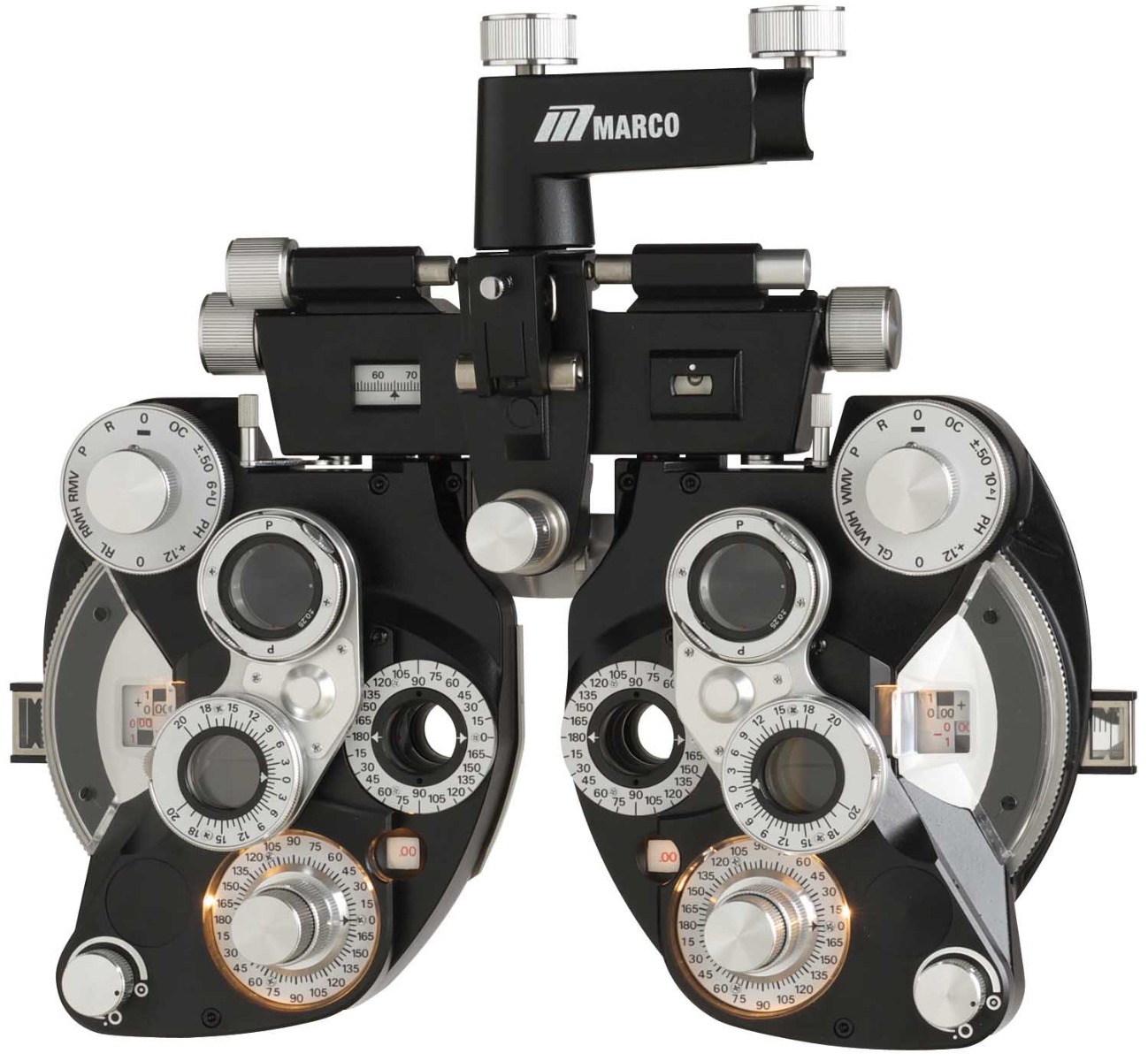

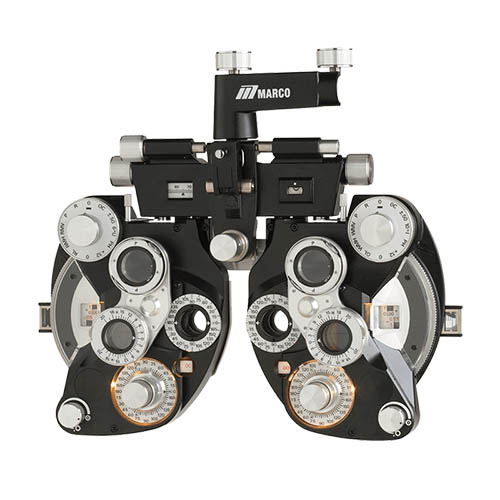

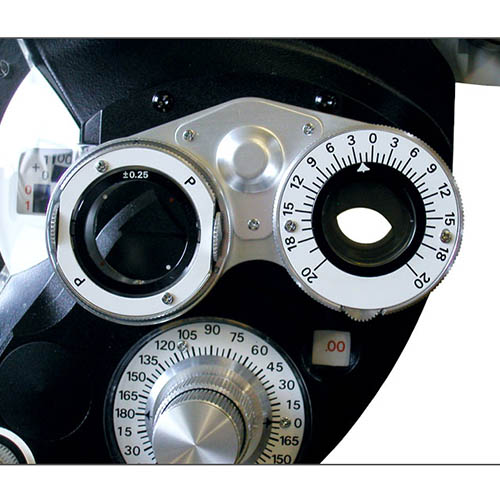

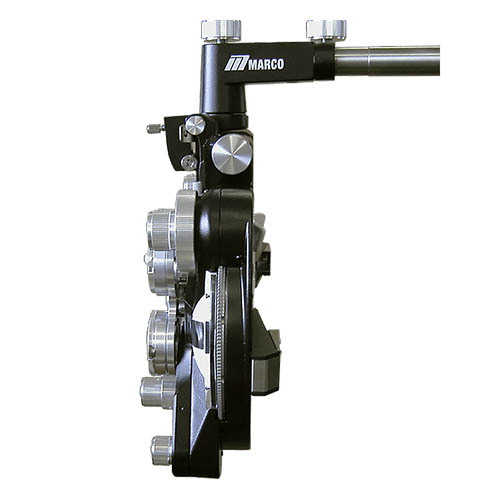

Marco RT-700 Illuminated Manual Refractor

Marco RT-700 Illuminated Manual Refractor

SKU: RE0MART700M

The Marco RT-700 Illuminated Manual Refractor combines a distinctive, industry-recognized design with adjustable LED illumination and the traditional controls eye care professionals expect from a manual refractor. Its illuminated scales, synchronized axis and cross-cylinder system, ergonomic controls, and high-quality optics support efficient, dependable refractions in any exam lane.

  • Infinitely adjustable LED illumination for sphere, cylinder, and axis measurements
  • White prism, accessory, and cross-cylinder scales provide easier recognition in dim lighting
  • Functional wing-grip design provides easier refractor-head maneuverability
  • Fully synchronized axis and cross-cylinder system
See all Specifications ↓
Request a QuoteFind Your Rep
Technical Details

Marco RT-700 Illuminated Manual Refractor Specifications

ConfigurationMinus cylinder
ColorBlack
Sphere Power Range+16.75 to -19.00 D
Sphere Step0.25 D
Cylinder Power Range0.00 to ±6.00 D; up to ±8.00 D with the additional ±2.00 D lens
Cylinder Axis0° to 180° in 5° steps
Cross Cylinder±0.25 D, selectively synchronized with the cylinder axis
Rotary Prisms0Δ to 20Δ in 1Δ steps
Auxiliary LensesOpen aperture, +1.50 D retinoscopic lens, polarizing lenses, white and red Maddox rods, red and green lenses, +0.12 D sphere, pinhole, disassociating prisms, ±0.50 D fixed cross-cylinder and occluder
PD Adjustment48–75 mm in 1 mm steps
Convergence AdjustmentInfinity to 400 mm
Forehead Rest Adjustment16 mm
Vertex Distance13.75 mm from the apex of the cornea
Dimensions344 W x 96 D x 305 H mm (13.54 W x 3.78 D x 12.01 H in)
WeightApproximately 4.44 kg (9.79 lbs)
Standard AccessoriesAllen wrench, near-point card, near-point card holder, power transformer, accessory lens set, reading rod, face shields, dust cover, power-cord tube and power-cord clips
Optional AccessoryPatient face shield with plano cover lens
Warranty5-year limited warranty
