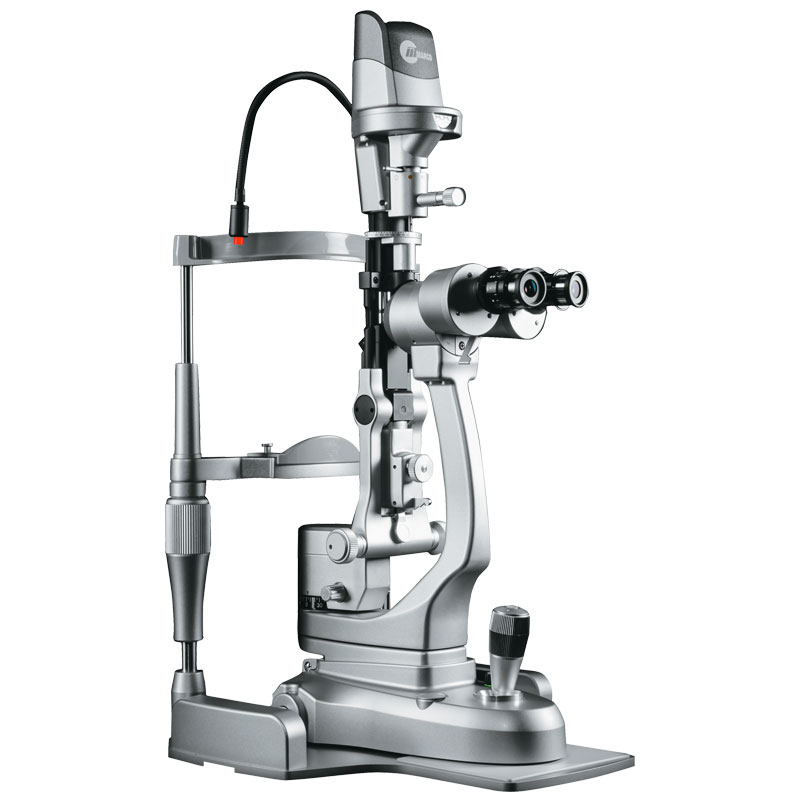

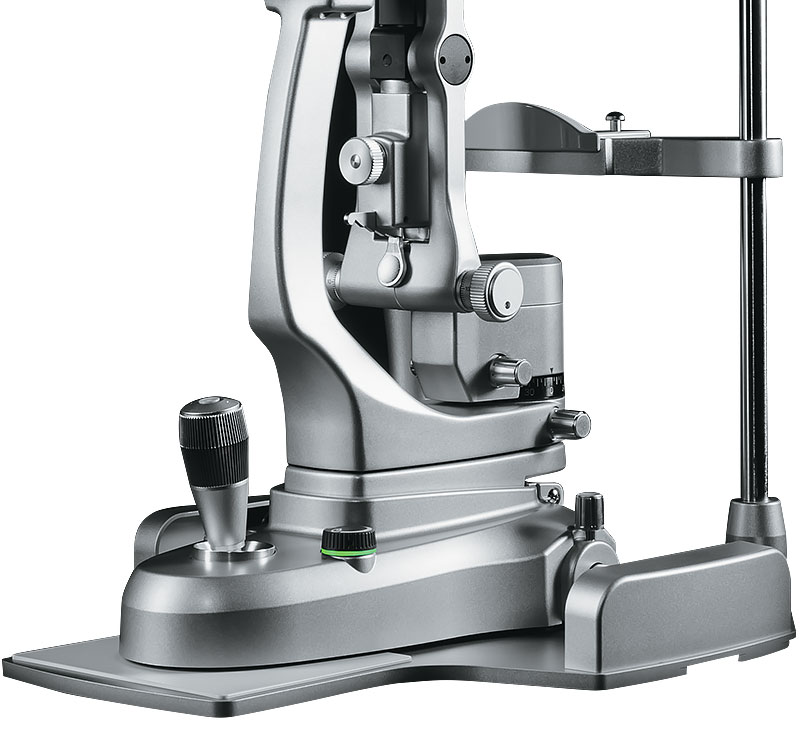

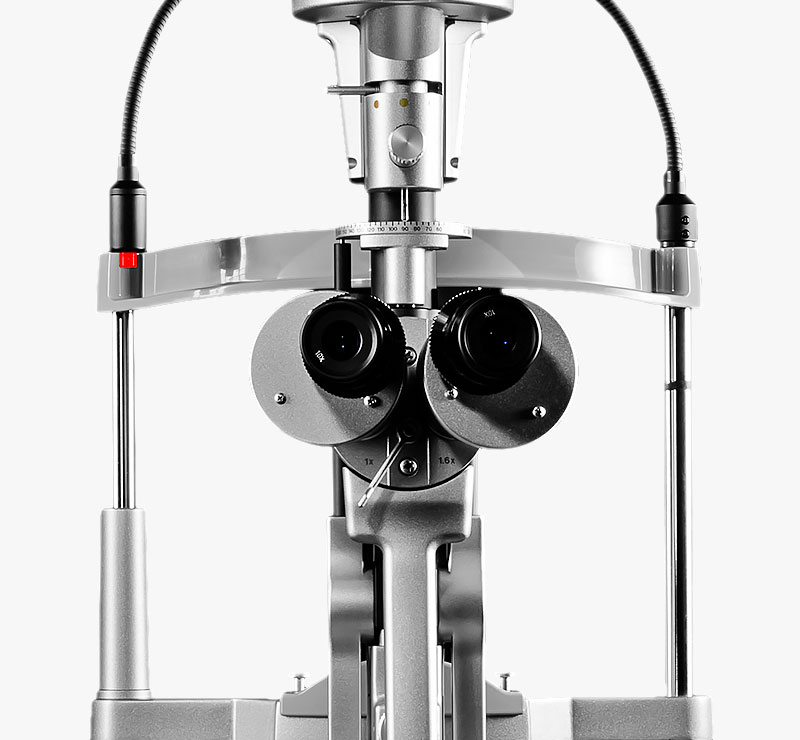

Marco Ultra M3 Slit Lamp

SKU: SL0MAM3U

Experience exceptional optical clarity in a streamlined, clinician-friendly design with the Marco Ultra M3 Slit Lamp. Its converging Greenough optical system provides comfortable stereoscopic viewing at 10x and 16x magnification, while single-element, high-luminance LED illumination delivers bright, sharp light for enhanced visibility during detailed examinations.

The Ultra M3 combines precise control with a sleek, cable-free design that keeps the examination area clean and uncluttered. A tower-style illumination system with tilt, multiple diagnostic filters, and smooth positioning controls make it a versatile, dependable choice for everyday clinical use.

  • Comfortable converging optics provide 10x and 16x magnification
  • Single-element, high-luminance LED delivers bright, sharp illumination
  • Cobalt blue, red-free, blue LED correction, and yellow filters support versatile examinations
  • Cable-free design creates a clean, uncluttered examination environment
See all Specifications ↓

Innovation in every detail.

Marco Ultra M3 Slit Lamp Specifications

Binocular Stereomicroscope TypeConvergent (Greenough)
Light SourceLED
Light Source ConfigurationTower with tilt
Background IlluminationOptional; not standard
Light FiltersCobalt blue, red-free, blue LED correction and yellow
Slit Width0–14 mm, continuously variable
Aperture Diaphragm DiametersØ14, 10, 5, 3, 2, 1 and 0.2 mm
Standard Magnifications10x and 16x
Optional Magnification25x with optional 16x eyepieces
Magnification ChangeTwo-position revolving objective switch
Eyepieces10x standard; 16x optional
Field of View with 10x EyepiecesØ18 mm at 10x; Ø11.25 mm at 16x
Field of View with 16x EyepiecesØ15 mm at 16x; Ø9.3 mm at 25x
Interpupillary Adjustment52–82 mm
Diopter Adjustment with 10x Eyepieces±8 D
Diopter Adjustment with 16x Eyepieces±10 D
Horizontal Coarse Movement105 mm
Horizontal Fine Movement15 mm
Vertical Movement30 mm
Fixation Light SourceRed LED on flexible arm
Large Patient Chin RestOptional; not standard
Chinrest Elevation95 mm
Power SupplyAC 100–240 V ±10%
Power ConsumptionDC 5 V, 2 A
Weight12.5 kg
