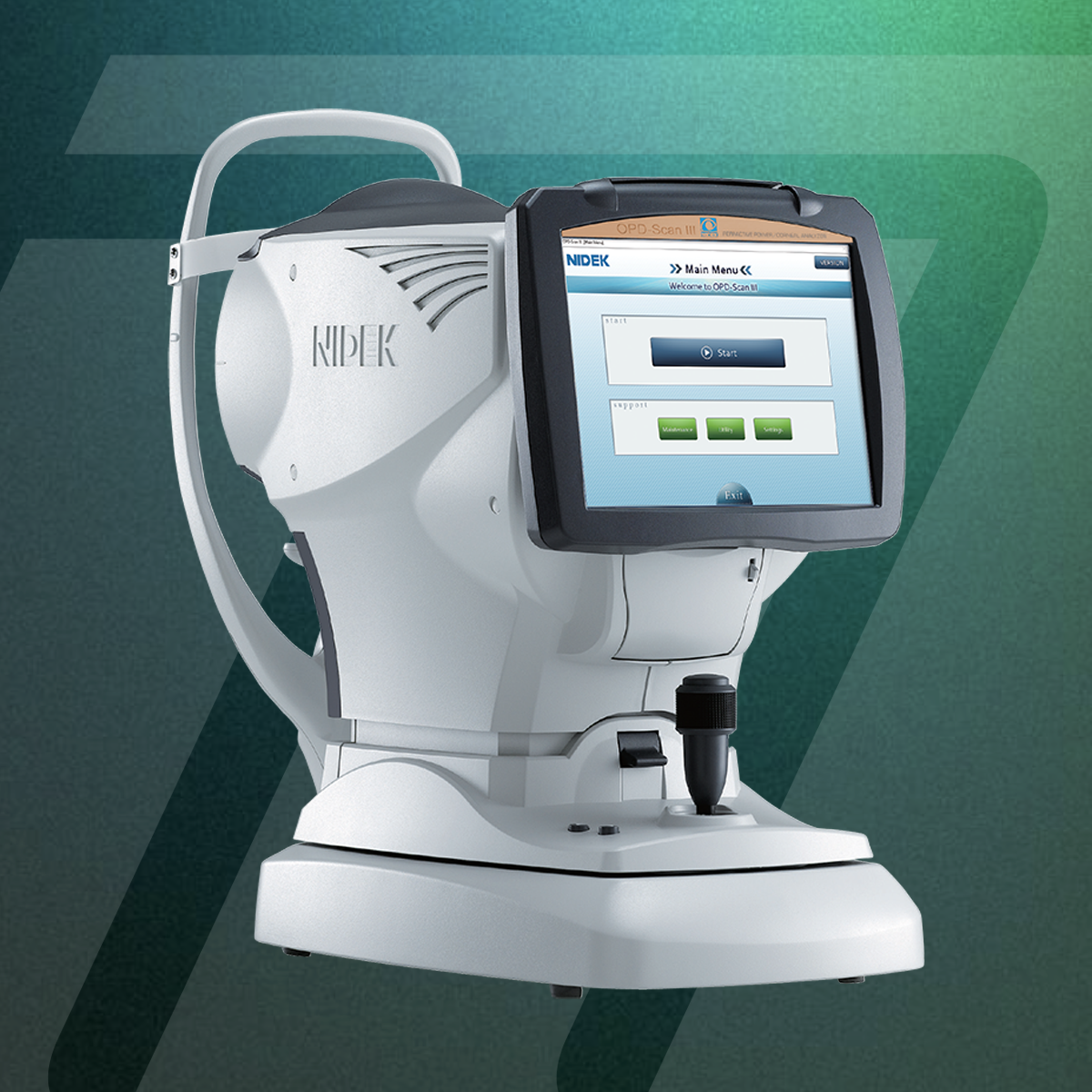

Marco OPD-Scan III Visual System
SKU: OPD-III VS INC
The Marco OPD-Scan III Visual System (VS) is a combination autorefractor, keratometer, corneal topographer, pupillometer, and wavefront aberrometer. This 5-in-1 instrument provides total measurements of your patients’ optical system in about 10 seconds per eye, helping you to select the best treatment plan for each individual patient.
- Auto alignment, tracking, and capture
- Detailed patient summaries
- Motorized chinrest
- Software to view results in your exam lane
Features
Innovation in every detail.
Auto alignment, tracking, and capture
Auto alignment, tracking, and capture
Detailed patient summaries
Detailed patient summaries
10.4” LCD touchscreen display
10.4” LCD touchscreen display
Motorized chinrest
Motorized chinrest
Technical Details
Marco OPD-Scan III Visual System Specifications
Display10.4-inch color LCD touchscreen
Auto TrackingX-Y-Z directions
PrinterBuilt-in thermal line printer
InterfacesRS-232C, LAN and four USB ports
Operating SystemWindows 10 Embedded
Dimensions533 x 284 x 525 mm
Weight23 kg
Wavefront Measurement PrincipleAutomated objective refraction using dynamic skiascopy
Spherical Power Range-20.00 to +22.00 D
Cylindrical Power Range0.00 to ±12.00 D
Axis Range0° to 180°
Wavefront Measurement Area2.0–9.5 mm
Wavefront Data Points2,520
Topography Measurement Rings33 vertical and 39 horizontal
Topography Measurement Area0.5–11.0 mm
Topography Data PointsMore than 11,880
Autorefraction Minimum Measurement PointØ2.6 mm
Keratometry Curvature Radius5.00–10.00 mm
Keratometry Refractive Power33.75–67.50 D
Keratometry Astigmatism0.00 to ±12.00 D
Pupillometry Diameter Range1.0–10.0 mm
Pupil Image TypesPhotopic and mesopic
