Reichert Ultramatic RX Master Illuminated Phoroptor

Reichert Ultramatic RX Master Illuminated Phoroptor

SKU: RE0RE11636

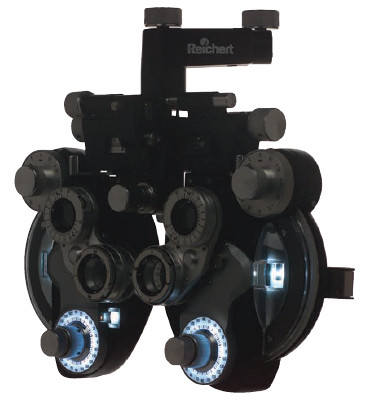

Now get legendary Phoroptor operation and construction with illuminated dials to make it easier and more efficient to perform refractions in the darkened setting of the exam room. Put away your pen light and leave the lights off throughout the entire process. The Illuminated Phoroptor features lighted sphere, cylinder power and cylinder axis scales that are easier than ever to see. The Illuminated Phoroptor utilizes cool-running, energy efficient LEDs that light only what you need to see without affecting the darkened refracting environment. The patented LED design results in maintenance-free illumination without the need to ever change a bulb.

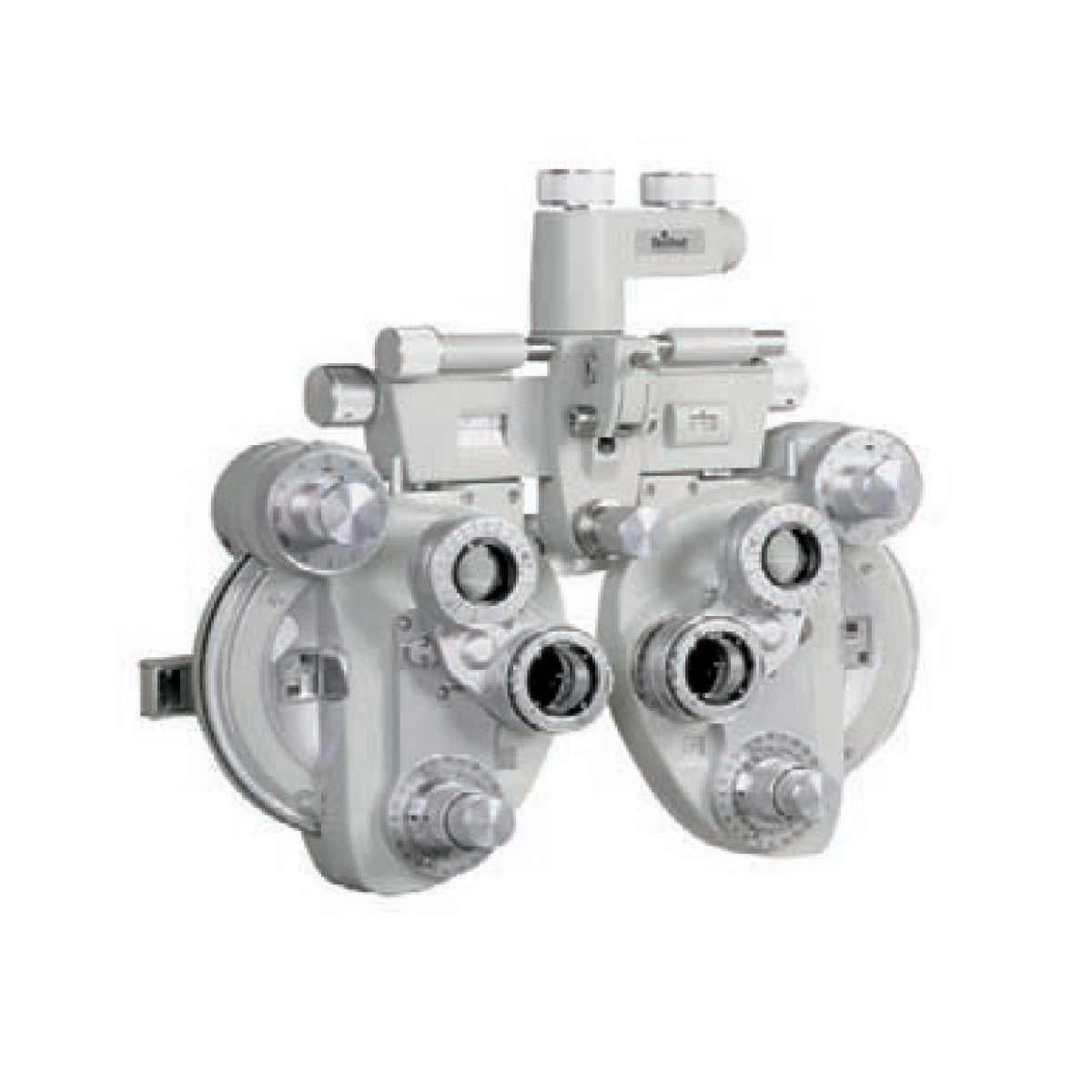

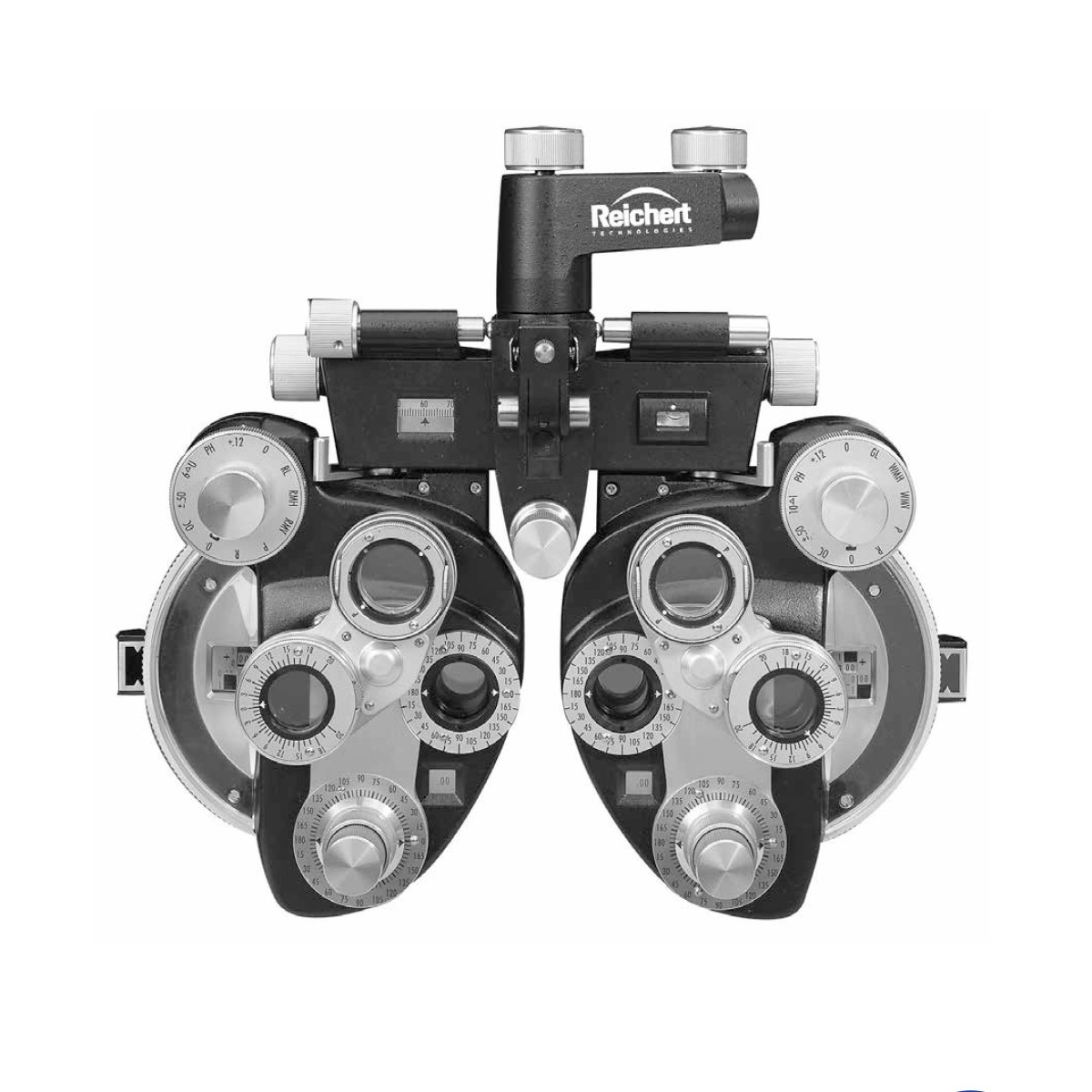

Available in plus or minus cylinder (black or white).

  • The Illuminated Phoroptor® and the original Ultramatic Phoroptor® are the only refractors that carry a limited lifetime warranty – your assurance of lasting quality and enduring value
  • Legendary feel and world-renowned mechanical quality
  • Made in the USA
  • Precision geared rotary prism for more precise interpolation of small prism diopters
See all Specifications ↓
Request a QuoteFind Your Rep
Technical Details

Reichert Ultramatic RX Master Illuminated Phoroptor Specifications

Sphere-19.00D to +16.75D0.25D Steps+0.12D Sphere in auxiliary dial included
Cylinder Power0.00D to 6.00D0.25D StepsPlus or minus lens system optional 0.12D and 2.00D accessory cells included
Cylinder Axis360 degrees (Double 0 to 180 degrees scale)5 degrees graduations
Cross Cylinder± 0.25± 0.37 or ± 0.05 Optional
Prism0 to 20 Prism Diopter, 1 Prism Diopter graduations
P.D.48 mm to 75 mm, 1 mm graduations
Vertex Distance13.75 mm (normal)Graduations extend range by 6 mm
Reading Distance5 to 28 inchesCentimeter and diopter scales included
Auxiliary Dial10 lenses plus 2 open apertures
Included Accessories (no extra cost)± .25 Flip cross cylinder+ 1.50 Retinoscopic LensesAccessory Case3 pair nylon face shieldsRotochartReading rod with card holder
Additional CapabilityUtilizes cool-running, energy efficient LEDs
Additional CapabilityLight only what you need to see without affecting the darkened refracting environment
