Reichert

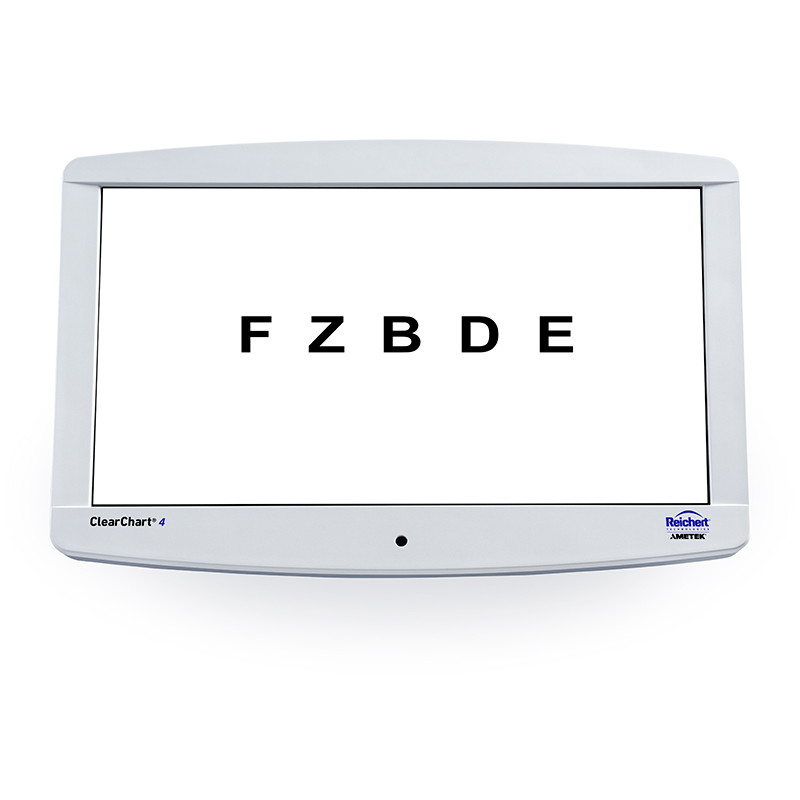

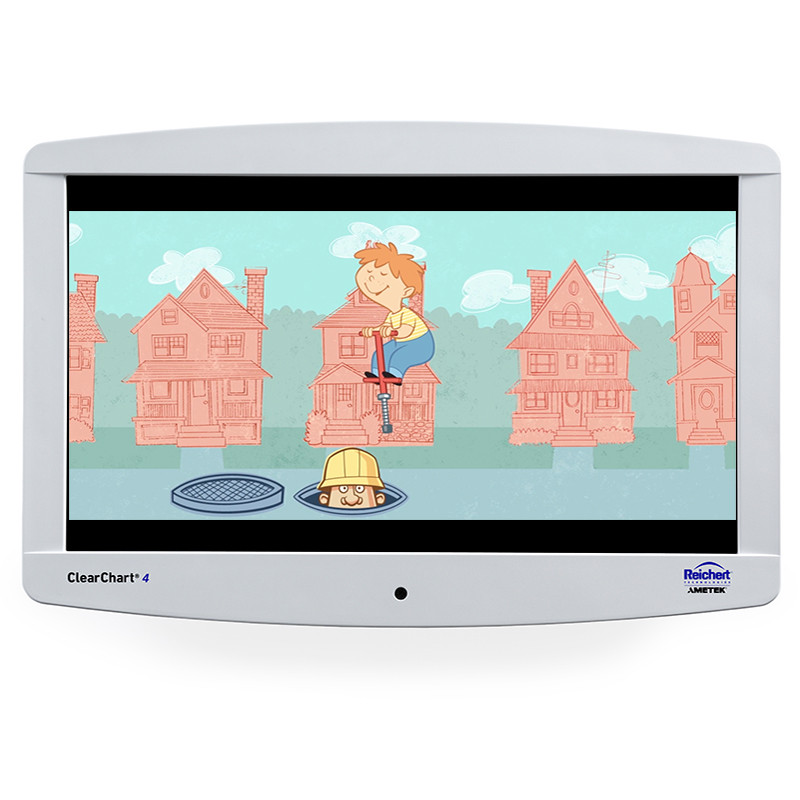

Reichert ClearChart 4 Digital Acuity System
SKU: CP0RE13795
The all-new family of ClearChart® Digital Acuity Systems from Reichert® are all-in-one, elegant, simple-to-use, and uniquely designed to meet all of your acuity testing needs with a wide selection of optotypes and other special test charts. The standard ClearChart 4 Digital Acuity System features a new 24 inch, high resolution, LED backlit display, is lightweight, cool running, and long-lasting. The intuitive user interface, whether controlled from the easy-to-use infrared remote or via the Phoroptor® VRx Digital Refraction System, provides the best user experience of any digital acuity chart.
- Includes 17-letter and 8-letter optotype sets
- Includes Sloan letter optotypes

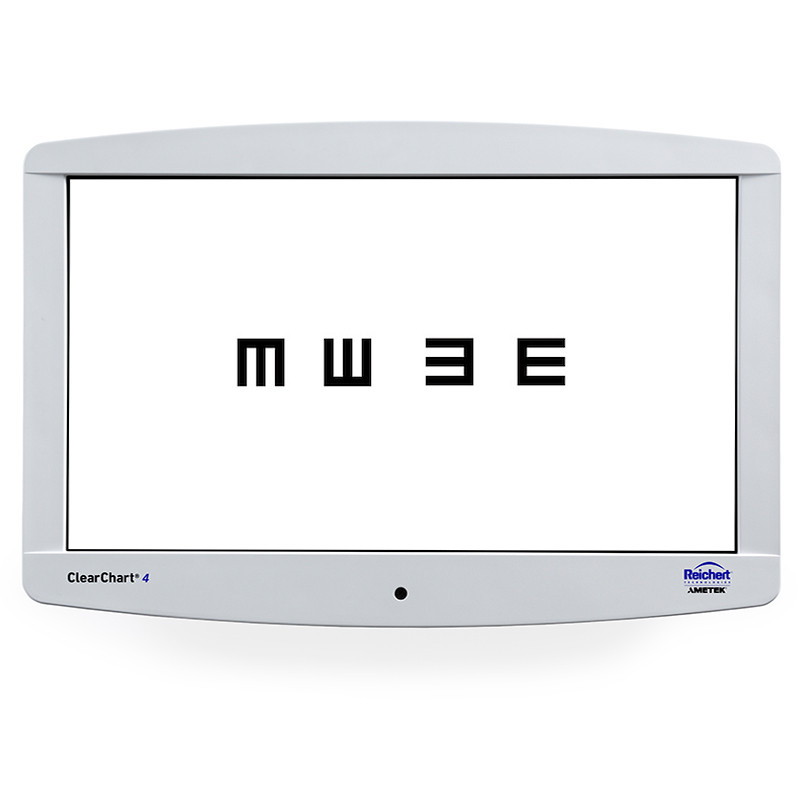

- Includes Tumbling E optotypes
- Includes Landolt C and O Landolt C optotypes
Technical Details
Reichert ClearChart 4 Digital Acuity System Specifications
Catalog Number13795
Display24 in. (60 cm) LED backlit LCD (1920x1080 Pixels)
Max Illumination220 cd/m2
Photopic Illumination85 cd/m2
Mesopic Illumination3 cd/m2
Refraction Range1.83 m (6 ft) - 7.5 m (24.6 ft)
DimensionsHeight:.39.62 cm (15.60 in)Width: 58.92 cm (23.20 in.)Depth: 7.62 cm (3.00 in.)
Weight(unpacked) 5.9 kg (13.1 lbs.)
Communication- RS232 Serial Port- 2 USB Ports- Can be linked by wired or wireless connection to a Reichert® digital Phoroptor®
Remote ControlInfrared
ElectricalVoltage: 100 - 240 volts AC 50/60 HzInput Power: 50-75 VAFuses: Time-Lag (2.5A, 250V), 5 x 20mmRemote Control: 2 AAA (LR03) batteries
Operational EnvironmentTemperature: 10° C (50° F) to 35° C (95° F)Relative Humidity: 30% to 75%Atmospheric Pressure: 80 (23.6 in. Hg) to 106 kPa (31.3 in. Hg)
Optional accessories(1) Wall mount bracket adaptor(1) USB Bluetooth adapter(1) Wireless dongle kit(1) Pair red/green glasses
ShippingNot eligible for free shipping
