Reichert ClearChart 4P Polarized Digital Acuity System

Reichert ClearChart 4P Polarized Digital Acuity System

SKU: CP0RE13785

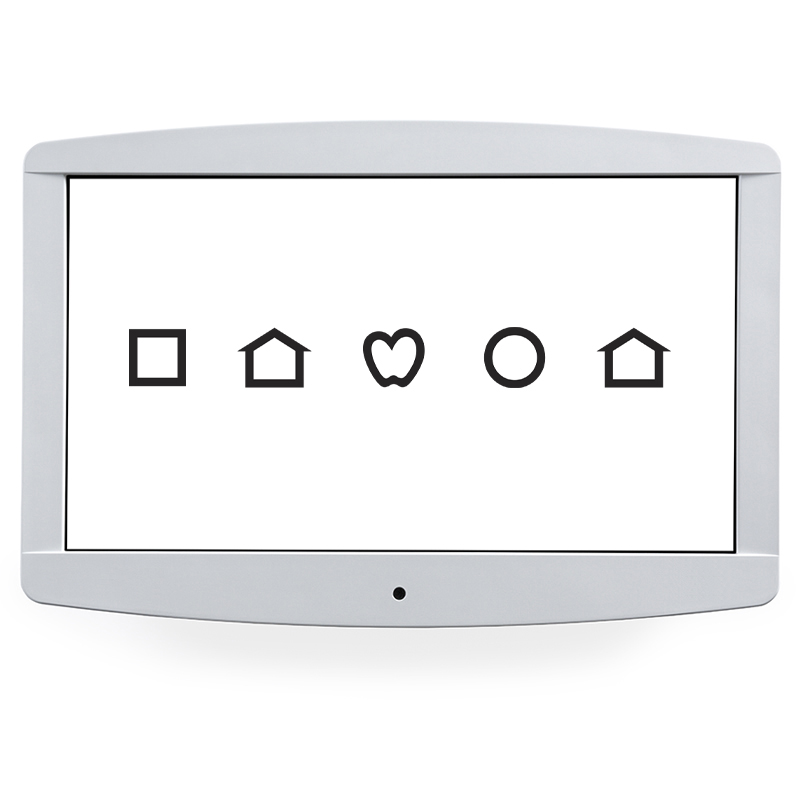

The all-new family of ClearChart® Digital Acuity Systems from Reichert® are all-in-one, elegant, simple-to-use, and uniquely designed to meet all of your acuity testing needs with a wide selection of optotypes and other special test charts. The ClearChart 4P Polarized Digital Acuity System features a polarized 24 inch, high resolution, LED backlit display, is lightweight, cool running, and long-lasting. The intuitive user interface, whether controlled from the easy-to-use infrared remote or via the Phoroptor® VRx Digital Refraction System, provides the best user experience of any digital acuity chart.

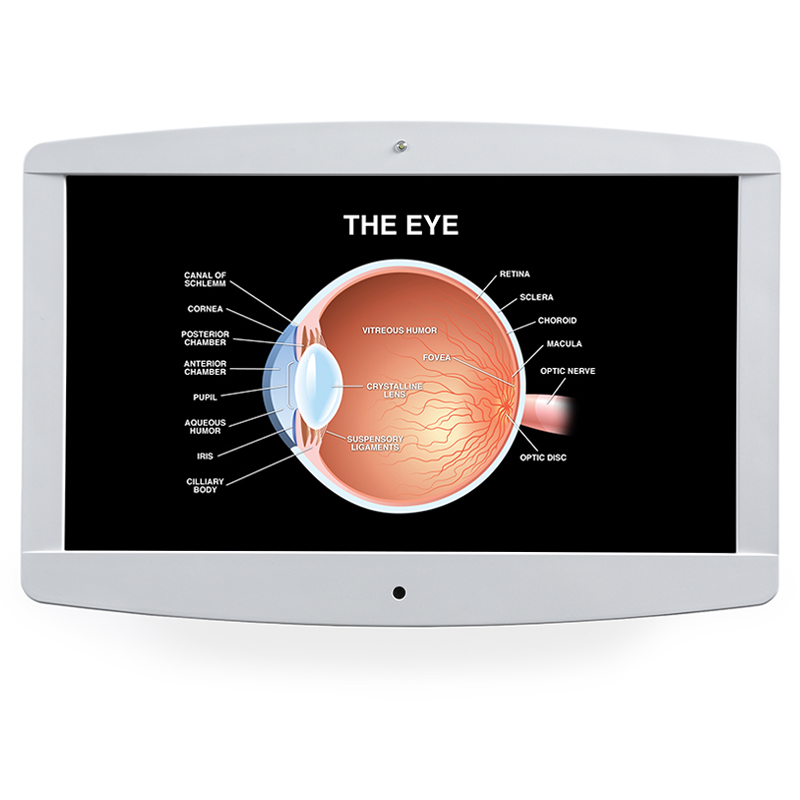

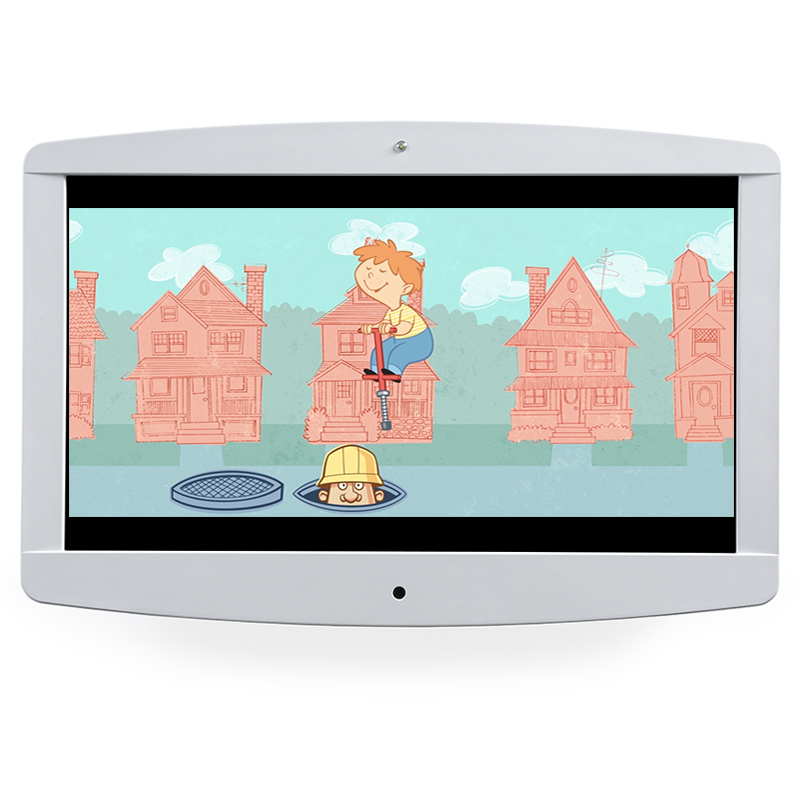

The ClearChart 4P has additional features such as stereo testing, color vision testing, ETDRS testing, patient education images, and ability to import images and video.

  • Includes 17-letter and 8-letter optotype sets

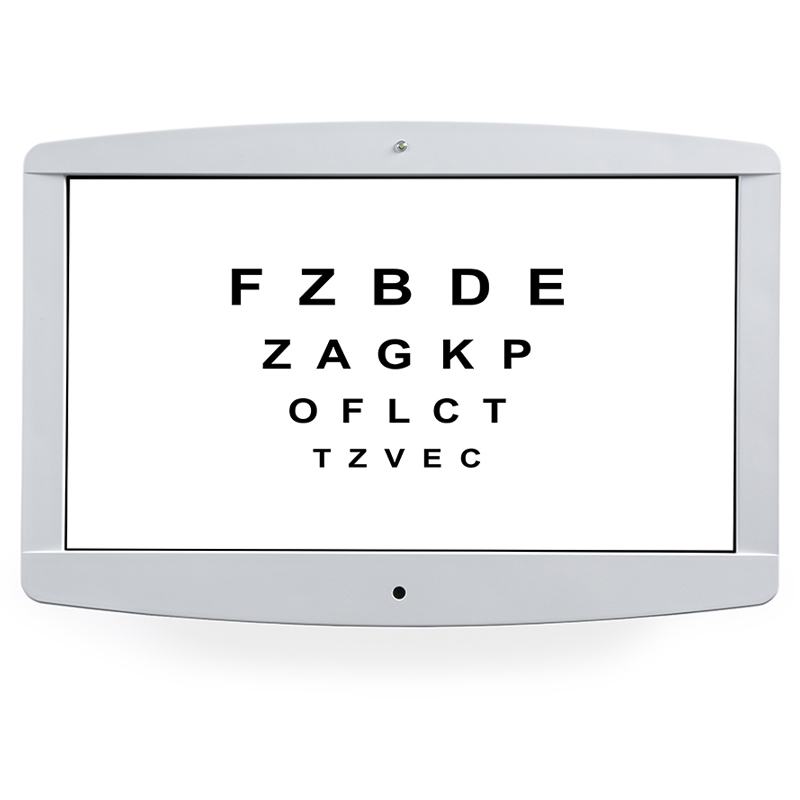

  • Includes Sloan letter optotypes
  • Includes Tumbling E optotypes

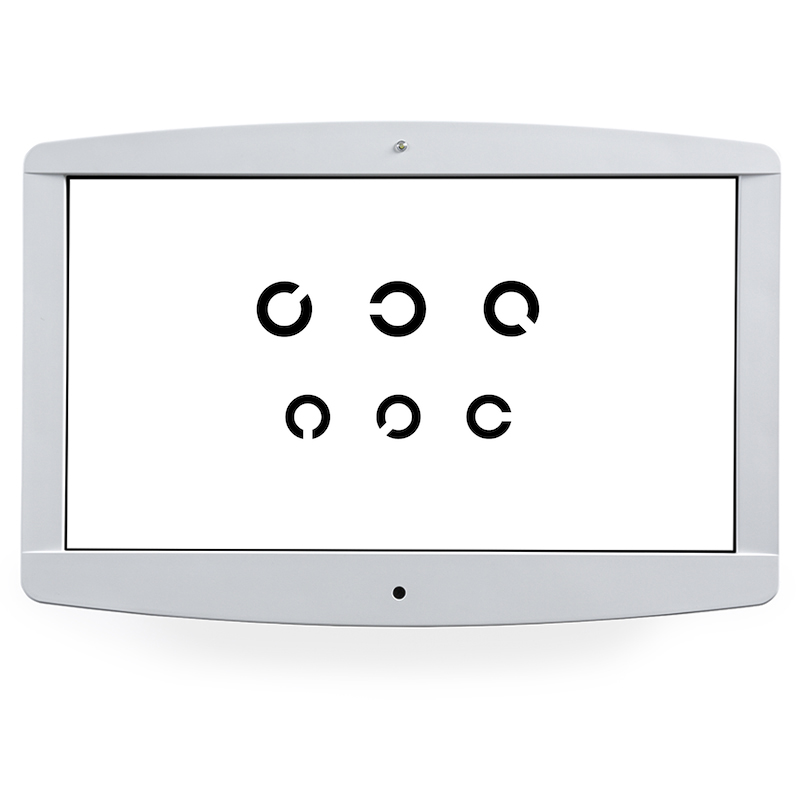

  • Includes Landolt C and O Landolt C optotypes
See all Specifications ↓
Request a QuoteFind Your Rep
Technical Details

Reichert ClearChart 4P Polarized Digital Acuity System Specifications

Catalog Number13785AG, 13785SE, 13785DL
Display24 in. (60 cm) LED backlit LCD (1920x1080 Pixels), with passive 3D capability
Max Illumination220 cd/m2
Photopic Illumination85 cd/m2
Mesopic Illumination3 cd/m2
Refraction Range1.83 m (6 ft) - 7.5 m (24.6 ft)
DimensionsHeight:.39.62 cm (15.60 in)Width: 58.92 cm (23.20 in.)Depth: 7.62 cm (3.00 in.)
Weight(unpacked) 5.9 kg (13.1 lbs.)
Communication- RS232 Serial Port- 2 USB Ports- Can be linked by wired or wireless connection to a Reichert® digital Phoroptor®
Remote ControlInfrared, programmed for LogMAR, Standard, or Linear Decimal chart progressions.
ElectricalVoltage: 100 - 240 volts AC 50/60 HzInput Power: 50-75 VAFuses: Time-Lag (2.5A, 250V), 5 x 20mm, RoHSRemote Control: 2 AAA (LR03) batteries
Operational EnvironmentTemperature: 10° C (50° F) to 35° C (95° F)Relative Humidity: 30% to 75%Atmospheric Pressure: 80 (23.6 in. Hg) to 106 kPa (31.3 in. Hg)
ClearChart 4P (13785) comes with(1) Remote control(2) AAA (LR03) batteries(2) Power cords - 0.6 m (3 ft.) length and 3 m (10 ft.) length(1) Wall mount bracket with screws(1) Wall mount adaptor(1) Pair polarized glasses(1) Key card for Pigassou Optotypes(1) Key card for Sheridan Gardiner Optotypes(1) User’s Guide
Optional accessories(1) Wall mount bracket adaptor(1) USB Bluetooth adapter(1) Wireless dongle kit(1) Pair red/green glasses
ShippingNot eligible for free shipping
