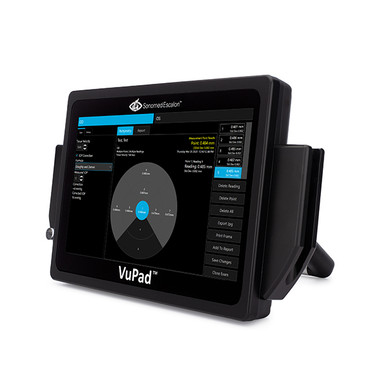

Sonomed VuPad Portable Ultrasound
Sonomed

Sonomed VuPad Portable Ultrasound

SKU: US0SMVUPADABFG

The VuPad portable ultrasound from Sonomed Escalon is configurable with B-scan, A-scan, UBM, Pachymetry, or any combination. Use on tabletop or attach to VESA mount. Truly outstanding image quality and elegant user interface.

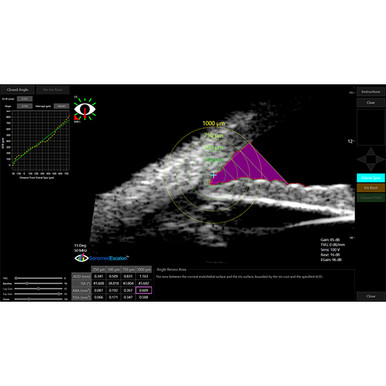

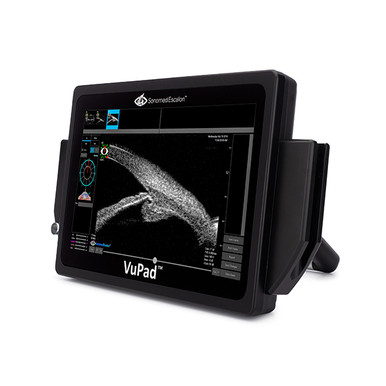

VuPad's superior UBM and B-scan image quality with Enhanced Focus Rendering™ and ultra high resolution touch screen allows you to capture both crisp still images and record video that can be carefully reviewed frame-by-frame.

With an intuitive graphic interface, VuPad™ makes ultrasound simple and straightforward. The multi-touch screen puts important functions easily at your fingertips. You can also take advantage of innovative, smartphone-inspired features like pinch zoom. VuPad™ also includes time saving pre-set scan settings to automatically optimize image quality depending upon area of viewing interest.

The compact, ergonomic VuPad is designed to adapt. You choose the modalities that you want – UBM, B-scan, A-scan and/or pachymetry. Dual-Band WIFI, Ethernet, USB, and Bluetooth allow you connect to other devices or your network. Large high resolution touchscreen with HDMI output. There’s also plenty of room onboard to store images, with a large high-performance SSD drive and flexible export capabilities, including DICOM option.

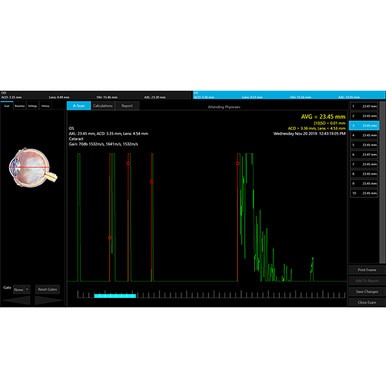

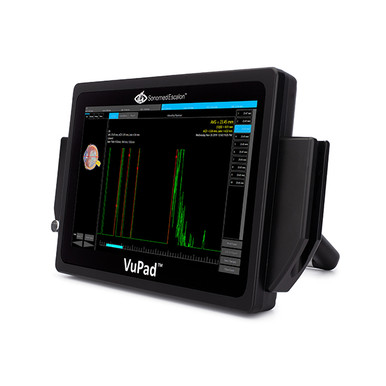

  • Contact or immersion A-scan has manual/auto capture in five eye modes, axial/chamber/lens/vitreous measurements, statistics for up to 5 scans, standard/post-refractive IOL formulas, and standard/Soft-Touch probes for handheld, immersion or slit-lamp use.

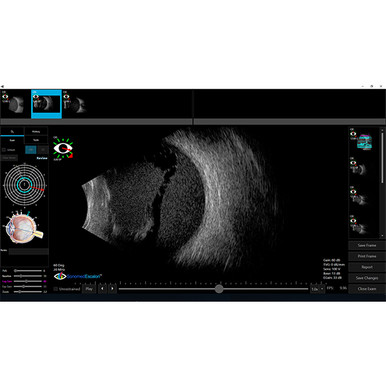

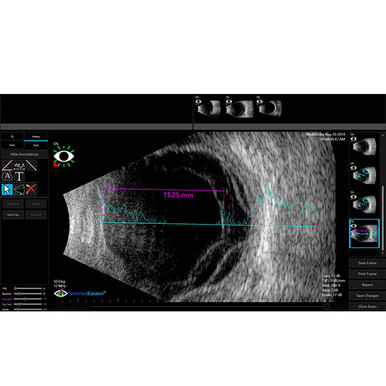

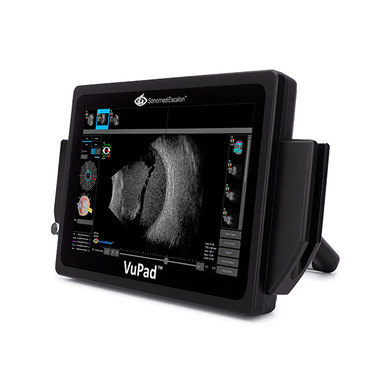

  • A focused 12 MHz B-scan probe captures stills/video with frame review and on-probe control; near/mid/far gain and TVG, a selectable A-scan vector, annotation/measurement tools, continuous zoom, and image panning aid interpretation.
  • One system, multiple options
  • Unparalelled image quality
See all Specifications ↓
Request a QuoteFind Your Rep
Technical Details

Sonomed VuPad Portable Ultrasound Specifications

Available ModalitiesA-Scan, B-Scan, UBM and pachymetry in any combination
Image RenderingEnhanced Focus Rendering™ (EFR™) for B-Scan and UBM imaging
ZoomContinuous interpolative zoom up to 4×
Image AnnotationAutomatic annotation of images and video clips
DatabaseIntegrated patient database with exam-record storage
User ProfilesCustomizable profiles with user-selectable defaults
Exam ReportsCustomizable reports for printing or export
Storage128 GB SSD
Wireless ConnectivityDual-band Wi-Fi and Bluetooth 4.0
Wired ConnectivityGigE Ethernet LAN and USB 3.0 ports
Data ExportOne-touch export of JPG images, AVI video clips and PDF exam reports
DICOMAvailable
Printer CompatibilityWindows-compatible printers
Operating SystemMicrosoft Windows 8
Display10.1 in high-resolution multi-touchscreen, 1280 x 800 pixels
MountingAdjustable tabletop kickstand and VESA mounting bracket
Power Supply100–240 V AC, 50/60 Hz, auto-switching medical-grade power supply
A-Scan ProbeSealed A-probe with 10 MHz focused transducer
A-Scan Probe OptionsStandard immersion probe or Soft-Touch direct-contact probe
A-Scan ModesDirect contact or immersion
A-Scan CaptureManual or automatic
A-Scan Examination ModesCataract, dense cataract, aphakic and pseudophakic
A-Scan MeasurementsAnterior chamber depth (ACD), lens thickness, vitreous depth and axial length (AXL)
A-Scan AveragingAverage and standard deviation calculated for up to 10 scans per examination
Tissue VelocitiesConfigurable by zone
Standard IOL FormulasBinkhorst, Regression-II, Theoretic/T, Holladay, Hoffer-Q and Haigis
Post-Refractive IOL FormulasLatkany Myopic Regression, Latkany Hyperopic and Aramberri Double-K
Lens Calculations0.25 D increments
Lens DatabaseMore than 1,600 lenses
B-Scan ProbesSealed 12 MHz or 20 MHz focused transducers
B-Scan Sampling256-ray scan
B-Scan ControlsAdjustable time-varied gain (TVG), baseline, log gain and exponential gain
Scan Position IndicatorOne-click axial or longitudinal clock-position selection with eye-model confirmation
Scan AnnotationFree-form scan-position text automatically applied to images and video clips
B-Scan Video Capture50-frame video clips at up to 20 fps
B-Scan Video ReviewReal-time, scalable slow-motion or frame-by-frame playback
B-Scan Video StorageUp to 6 video clips per eye per examination
B-Scan Image StorageUnlimited individual images per eye per examination
A-Scan TraceSelectable A-Scan trace may be superimposed on B-Scan images
B-Scan MeasurementsUnlimited linear-caliper and angle measurements
UBM ProbeHD water-path probe
UBM Transducer Options35 MHz or 50 MHz focused transducers
UBM Scan SettingsSelectable profiles optimized for sulcus-to-sulcus measurements or angle detail
UBM Sampling256-ray scan
UBM Scan ControlsFully adjustable
UBM Video Capture50-frame video clips at up to 20 fps
UBM Video ReviewReal-time, scalable slow-motion or frame-by-frame playback
UBM Video StorageUp to 6 video clips per eye per examination
UBM Image StorageUnlimited individual images per eye per examination
UBM A-Scan TraceA-Scan trace may be superimposed on images and measured with calipers
UBM MeasurementsUnlimited linear-caliper and angle measurements
