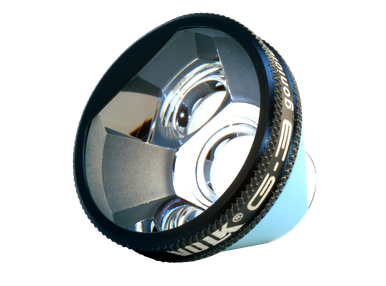

Volk VG3NF 3 Mirror Glass Gonio Fundus Laser Lens (No Flange-No Fluid), with Black Ring
SKU: GP0VO3MIRNF
The Volk G-3 is ideal for anterior chamber as well as central and peripheral fundus viewing and treatment.
Volk's G-3 goniofundus lens incorporates 3 mirrors angled at 76°, 66° and 60°. The G-3 is ideal for anterior chamber as well as central and peripheral fundus viewing and treatment. The retinal viewing mirrors are accurately angled and spaced 120° apart to eliminate "gaps" in the visualized fundus. The central portion of the lens also provides direct observation of the central portion of the posterior pole. Solid, all-glass design means no more fogging!
Comes with a complimentary case. Please allow 6 weeks for delivery for lenses with engravings.
Volk Product ID: VG3, VG3NF
FEATURES
- 60° mirror provides a view of the iridocorneal angle
- 66° mirror provides a retinal image from the equator to the ora serrata
- 76° mirror provides a view of the mid-peripheral/peripheral retina
- Available in two formats: flanged (recommended for laser trabeculoplasty) and no flanged (recommended for routine gonioscopy)
- This three mirror Goldman-style lens equipped with unbeatable Volk optics is a must have for every Glaucoma specialist
SPECIFICATIONS
| Mirror Angles | Image Magnification | Laser Spot Size | Contact Diameter |
| 60°/66°/76° | Flange: 1.06x No Flange: 1.03x | Flange: 0.94x No Flange: 0.97x | Flange: 15 mm No Flange: 11.4 mm |
- Viewing mirrors are accurately angled to eliminate gaps in the visualized fundus
- No flange option is ideal for use on infants or patients with narrow palpebral fissures
- Exclusive advanced no fluid (ANF+) flange option eliminates need for viscous coupling fluid
- Flattest mirror surfaces minimize image distortion
